A copper slide is a groove or ridge made of copper alloy material, which is a device that can withstand, fix, guide a moving device or equipment and reduce its friction. A longitudinal groove or ridge on the surface of a guide rail used for guiding, securing machine parts, special equipment, instruments, etc. The guide rail, also known as the slide rail, linear guide rail, linear slide rail, is used for linear reciprocating motion occasions, has a higher rated load than the linear bearing, and can bear a certain torque, can achieve high-precision linear motion under high load.
Casting process:Centrifugal casting, sand casting, metal casting
Application:Mining, coal mining, machinery industry
Surface finish:Customisation
Material:Customised bronze alloys
Share :
Product Description
Features
Parameters
Application Scenario
Related Products
Product Description
Characteristics of skateboard substrate

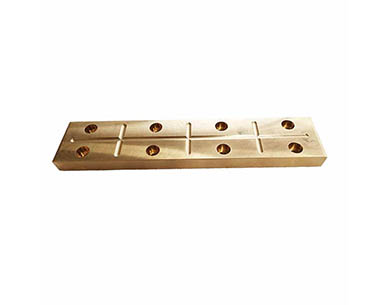

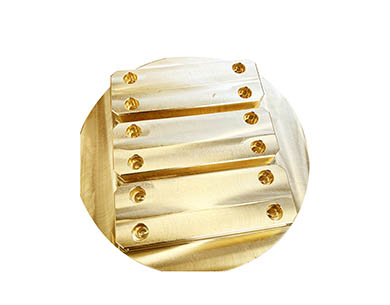

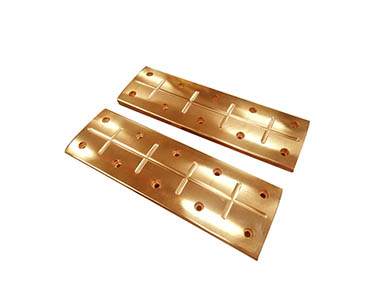

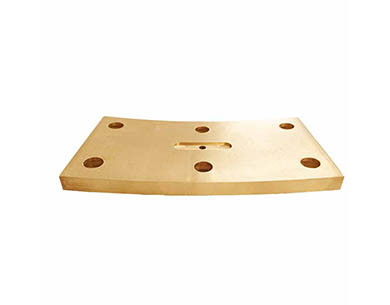

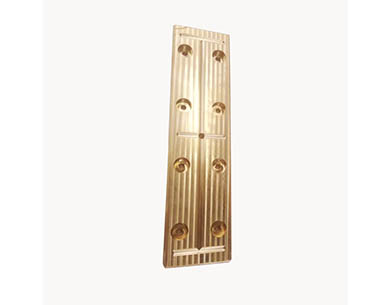

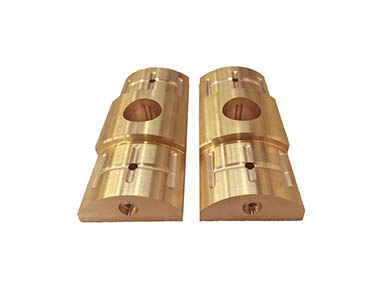

The top of the copper slide block is provided with a through hole, the top of the copper slide block is provided with a connecting hole, and the interval between the through hole and the connecting hole is provided, the inner wall of the through hole is provided with a graphite strip, the graphite strip is fixed between the through hole and the adhesive, the outer circumference of the through hole is provided with an internal groove, and the internal groove is located on the surface of the skateboard, the top surface and the bottom surface of the skateboard are fixed with a wear-resistant layer, and the skateboard is provided A connecting layer is fixed on both sides. The copper-based material skateboard through the setting of the internal groove, through the internal groove can not only increase the contact area between the grinding machinery and the graphite powder on the skateboard, improve the lubrication effect, but also make the graphite powder generated by the friction between the graphite strip and the grinding machinery into the internal groove, store the graphite powder, reduce the loss of graphite powder, and reduce dust pollution, improve the practicality of the graphite powder, suitable It is used in the production and use of copper base material copper slider, and has a good development prospect.
Copper slide applied to:
Automobile industry, motorcycles, all kinds of hydraulic machinery, metallurgical machinery, forging machinery, oilfield machinery, construction machinery, mining machinery, electric power facilities, etc.
Material recommendation
ZCuAl18Mn12Fe3Ni2
ZCuAl18Mn12Fe3Ni2 is a copper based, containing a high proportion of aluminum, manganese and a certain amount of iron, nickel and other elements, with high strength, good wear resistance, corrosion resistance and casting properties, mainly used in shipbuilding, machinery manufacturing, chemical and other fields of important parts manufacturing multi-alloyed cast copper alloy.
ZCuAl10Fe3Mn2
ZCuAl10Fe3Mn2 cast copper alloy has high mechanical properties and wear resistance, heat treatment, good corrosion resistance and oxidation resistance at high temperatures, good corrosion resistance in the atmosphere, fresh water and sea water, can be welded, not easy to braze, large castings since 700℃ air cooling can prevent brittling. ZCuAl10Fe3Mn2 cast copper alloy is used for parts requiring high strength, wear resistance and corrosion resistance, such as gears, bearings, bushings and heat-resistant pipe fittings.
ZCuSn5Pb5Zn5
ZCuSn5Pb5Zn5, is a copper matrix, containing tin, lead, zinc about 4.0%-6.0%, with good wear resistance, corrosion resistance, easy processing, casting performance and air tightness is also good, often used in the manufacture of bearing bushing, bushing, worm gear and other high load, medium sliding speed under the wear-resistant parts of cast copper alloy.
ZCuSn12
Copper as the matrix, tin content of about 11%-13%, may also contain lead, nickel, phosphorus and other elements, with high strength, high hardness, good wear resistance, corrosion resistance, casting performance and machinability, tensile strength up to 450MPa, hardness of about 1080HB. Widely used in machinery manufacturing, shipbuilding, chemical equipment and other fields of manufacturing bearing, gear, bearing and other parts of copper alloy
Application Fields

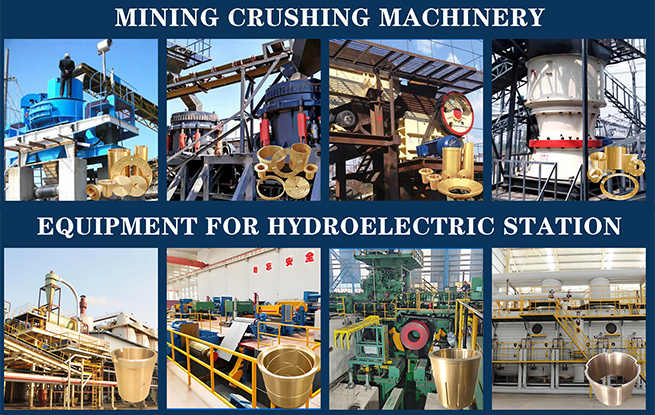

Metallurgical Industry: It is used in equipment such as steel mill rolling mills, which can improve the service life and stability of the equipment. Mechanical Manufacturing: It is a commonly used component in equipment such as CNC machine tools, stamping machines, and CNC systems. It can also be used to manufacture components such as bearings, bushings, piston rings, and valve parts. Aerospace Field: With its high-temperature stability and high strength, it can be used to manufacture some components that need to withstand high pressure and corrosion resistance. Other Fields: It can also be applied to engineering systems such as the expansion joints of bridges and water tube boilers of high-temperature horizontal pipelines, as well as equipment such as mining machinery, heavy-duty cranes, and printing machinery.
Introduction Of Relevant Parameters
Casting process Centrifugal casting, sand casting, metal casting
Application Mining, coal mining, machinery industry
Surface finish Customisation
Material Customised bronze alloys
Quick Question And Answer
Bronze Bushing, Bronze Liner, Bronze Slide, Bronze Nut, Bronze Worm Gear, Bronze Slider And Other Bronze Alloy
Do you have requirements on quantity?
We can provide the quantity of drawings according to the customer, because there is a price advantage when there is a quantity, precisely because the quantity is mostly superior.
What material of copper do you have the most wear-resistant?
Also according to the customer with the frequency, performance, environment and other conditions to determine, generally we are recommended 555 such material.
Can we finish and deliver in a week?
Yes, there is no problem at all; the deadline is decided by the customer!
What kind of casting process can your company do?
Our company has many years of experience in casting machinery processing, with sand casting, centrifugal casting, metal casting, investment casting and other casting processes.
What are the commonly used materials?
Frequently made materials include: brass, tin bronze, lead bronze, aluminium bronze, phosphor bronze.
What kind of packaging do you use?
Depends on whether you are exporting or not, all export packaging is made of 15nm thickened non-fumigation boards, the domestic standard packaging is 10mm thin non-fumigation boards, the legs are solid wood, the domestic simple packaging is a cardboard box or grass rope winding.
What is your after-sales service commitment?
Our after-sales service commitment, the spot is shipped at that time, expedited 3 days delivery, normal about 20 days delivery, bulk about 20-30 days delivery, to ensure that the material, to ensure that the size, any problem free replacement or unconditional refund.
Customers want to expedite?
Our company's normal working period is 30 days, if you have special requirements, we can also discuss with the factory, with the time off work to expedite processing, expedited costs to talk to the customer. Depending on the circumstances of the expedited cost.
